Viking Produced Panel Options
VIKING PRODUCED

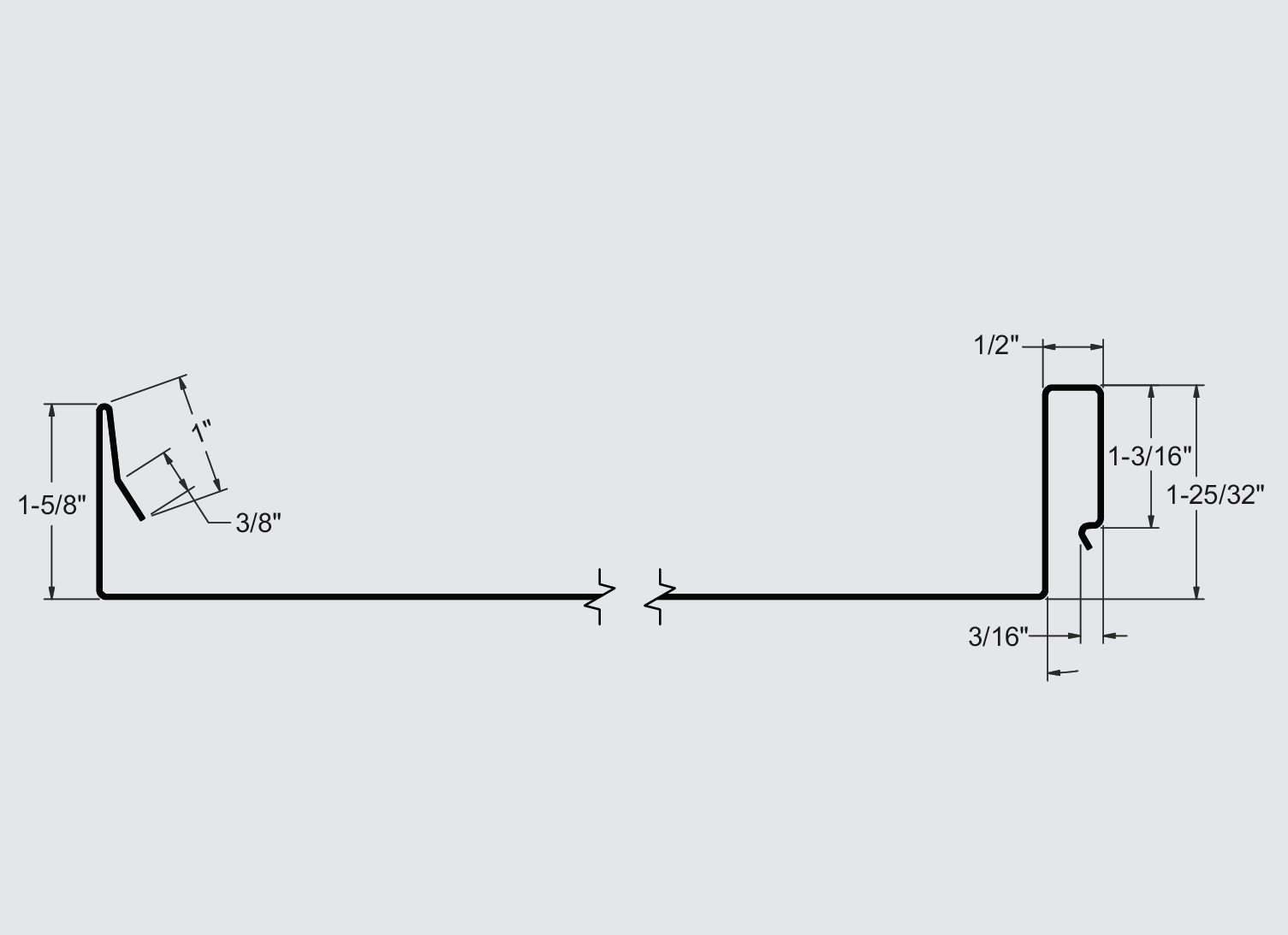

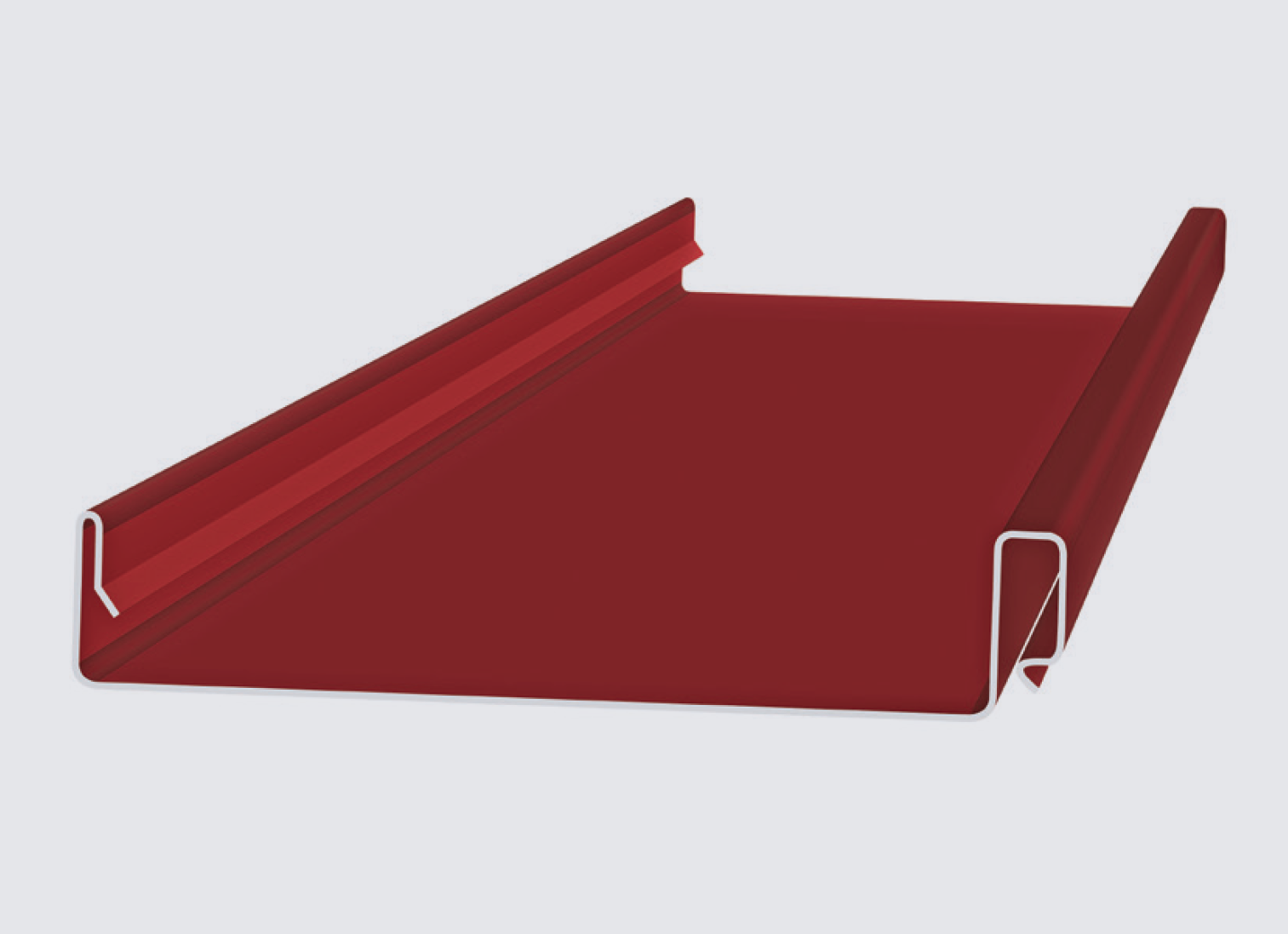

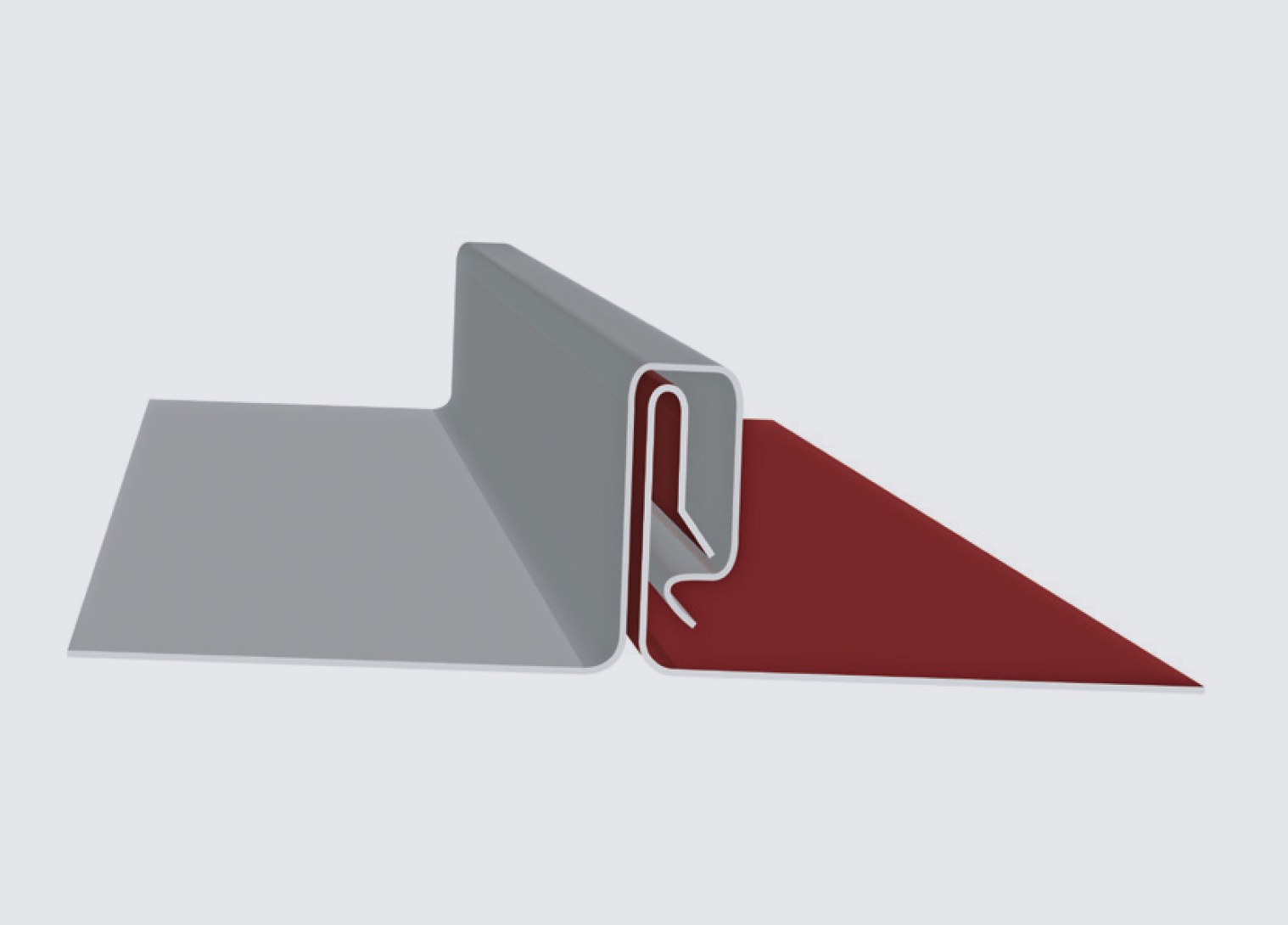

1.75'' Snap Lock
With this panel engineering, you may opt to use heavier gauge coil and narrower width panels. Clip spacing will not change. This panel uses a 22" coil. This panel uses 6-1/8" of material to form the panel. Divide the coil width by the panel width to determine your roof multiplier. Take the square footage of the roof and multiply that by the roof multiplier to determine the amount of coil needed to manufacture the panels. This does not include waste. Clip Relief, Bead Ribs, and Striations do not affect the engineering or function. This panel is approved for Weathertight Warranties.
Viking Produced

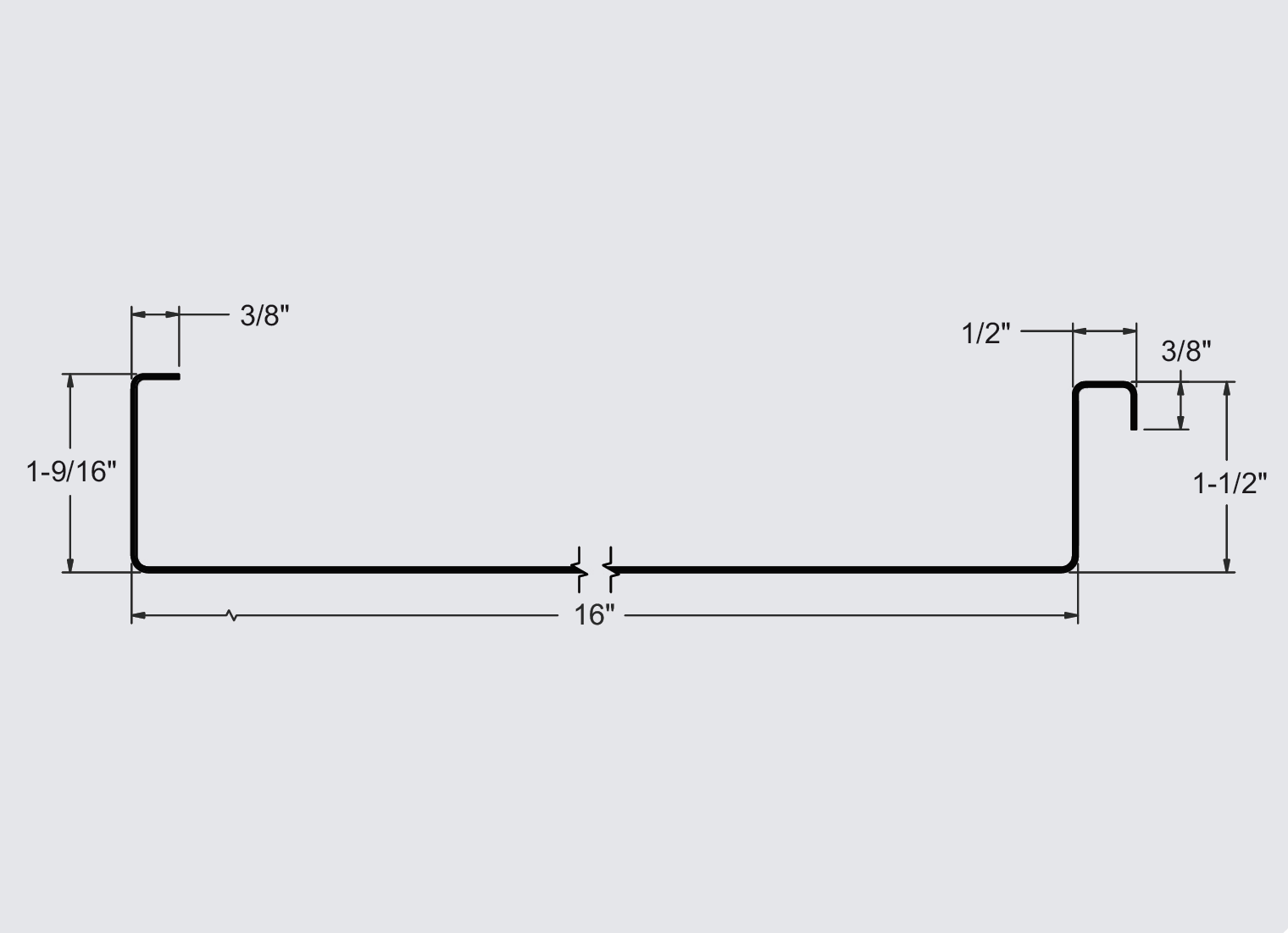

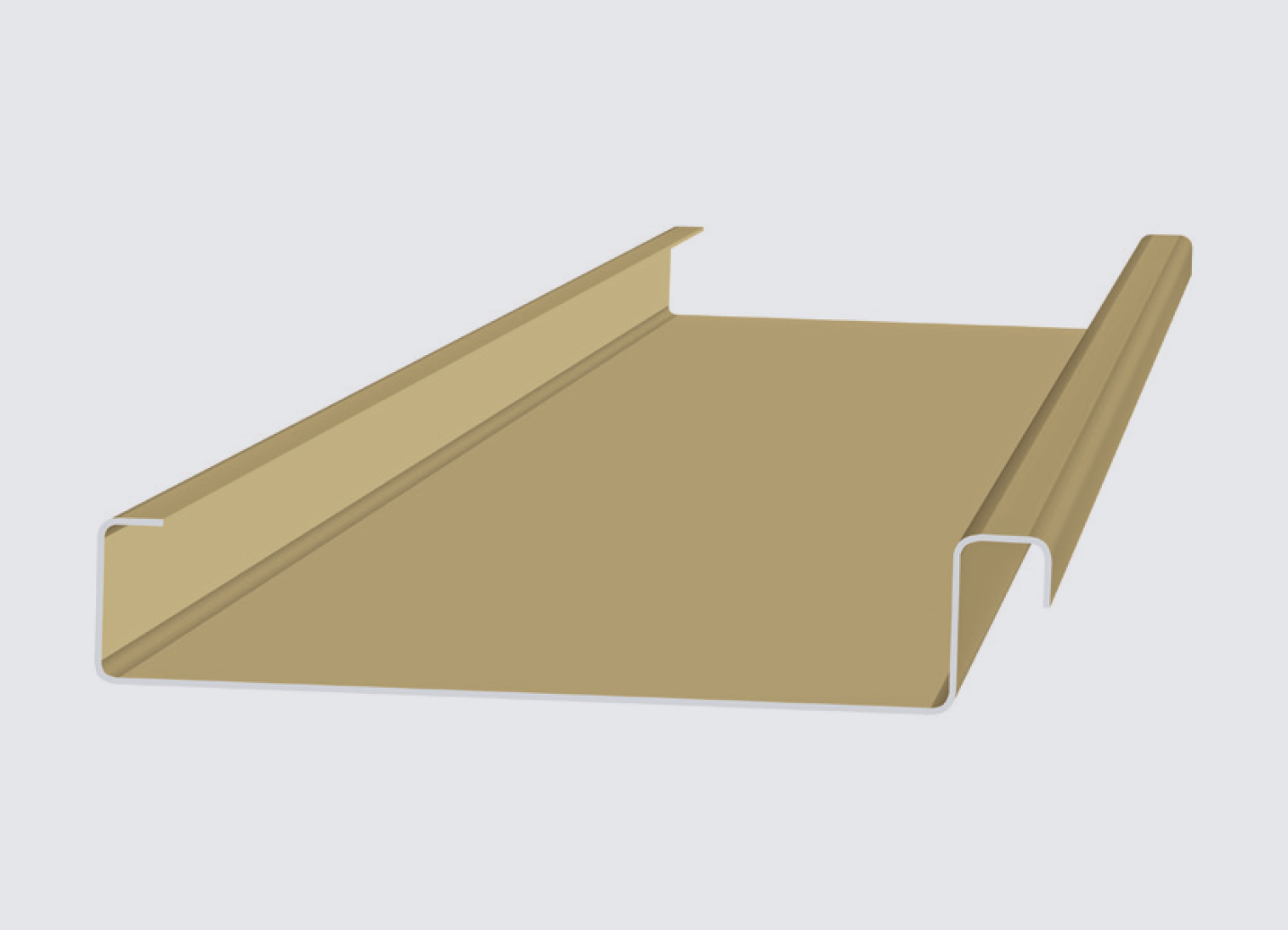

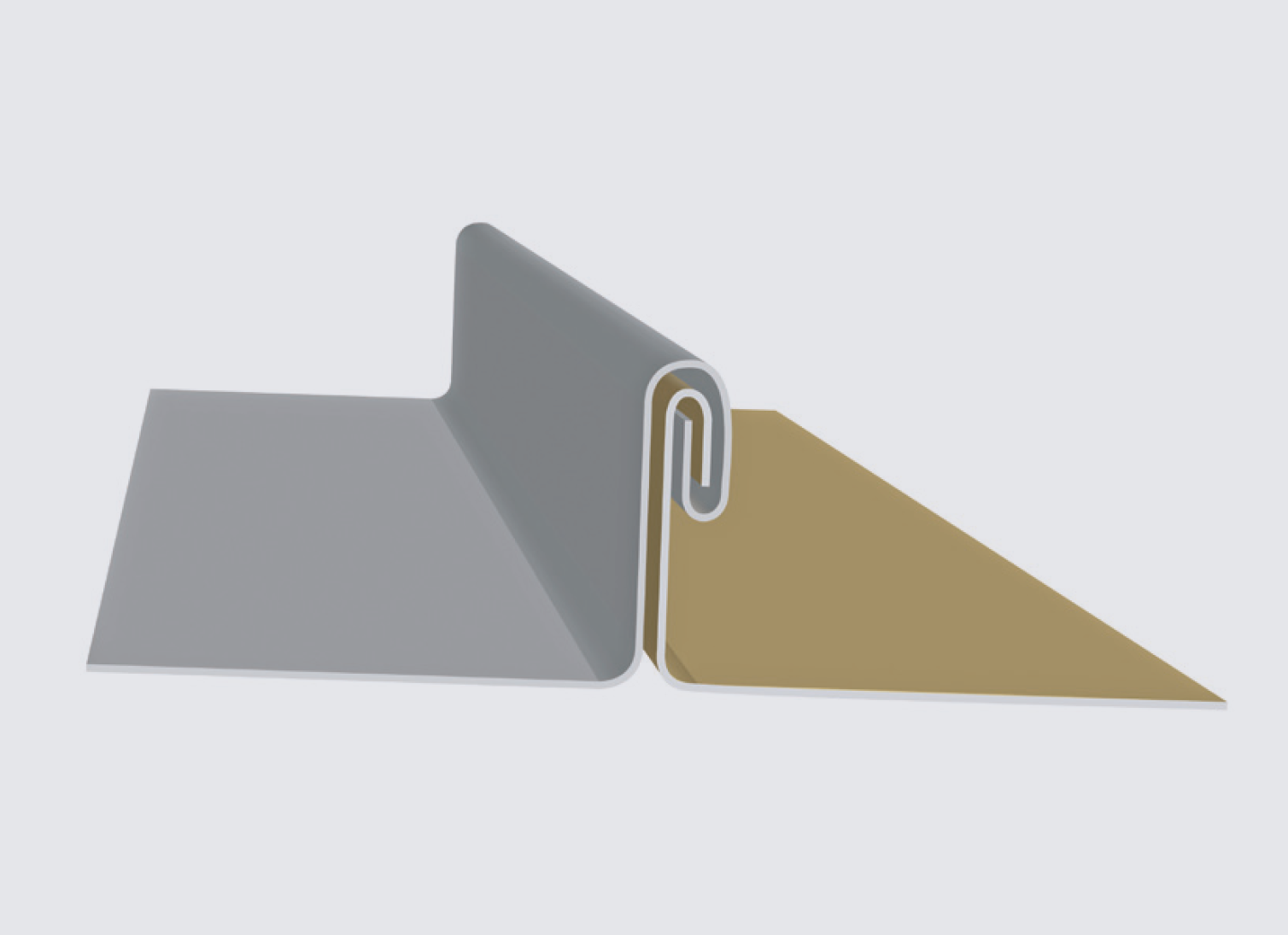

1.5'' Mechanical Seam
Hidden fastener/clip system for industrial/commercial use. Mechanically seamed panel system. This panel uses a 20" coil. Maximum coil width of 20." This panel uses 4" of material to form the panel. Divide the coil width by the panel width to determine your roof multiplier. Take the square footage of the roof and multiply that by the roof multiplier to determine the amount of coil needed to manufacture the panels. This does not include waste. Clip Relief, Bead Ribs, and Striations do not affect the engineering or function. This panel is approved for Weathertight Warranties.
VIKING PRODUCED

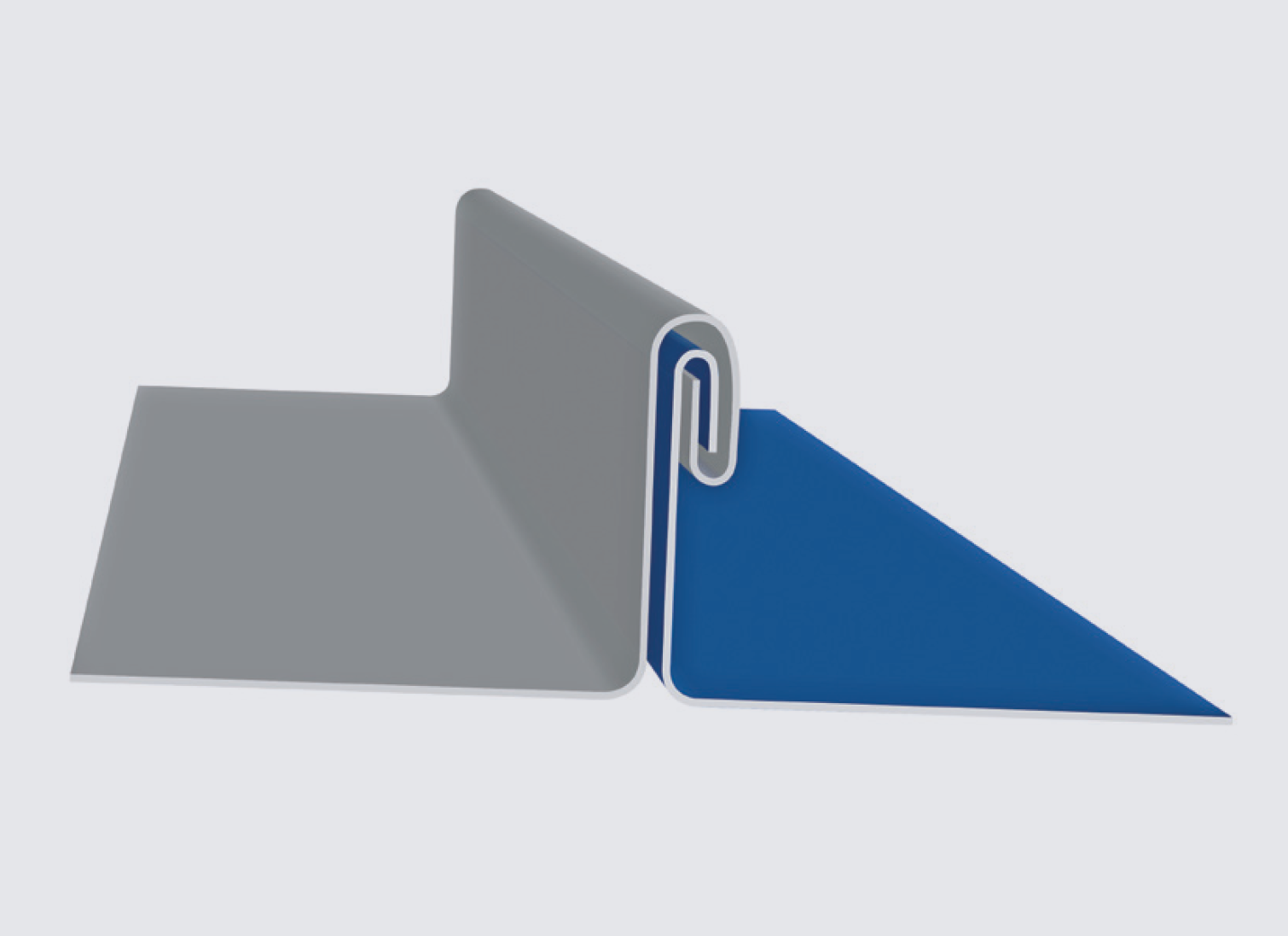

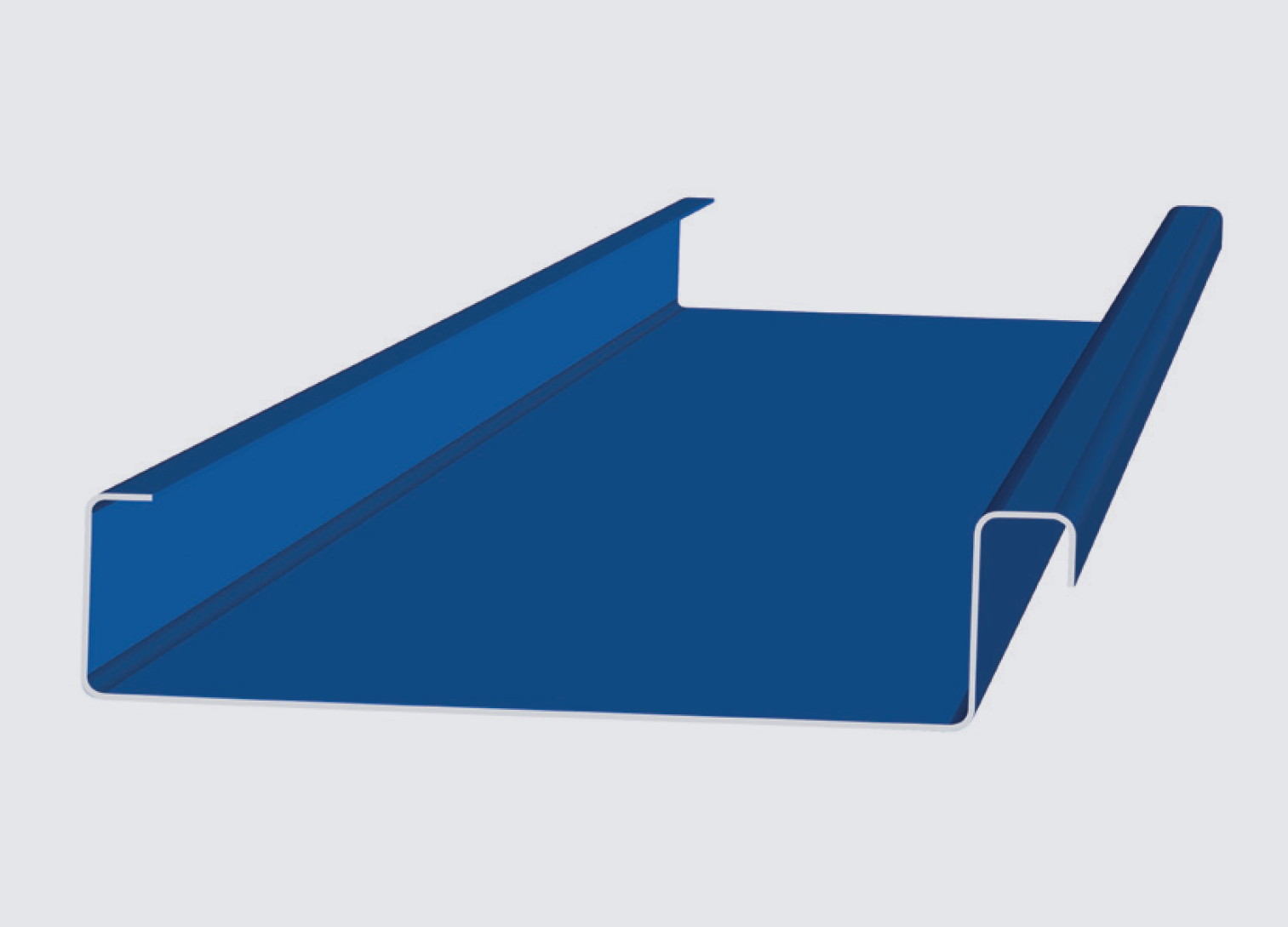

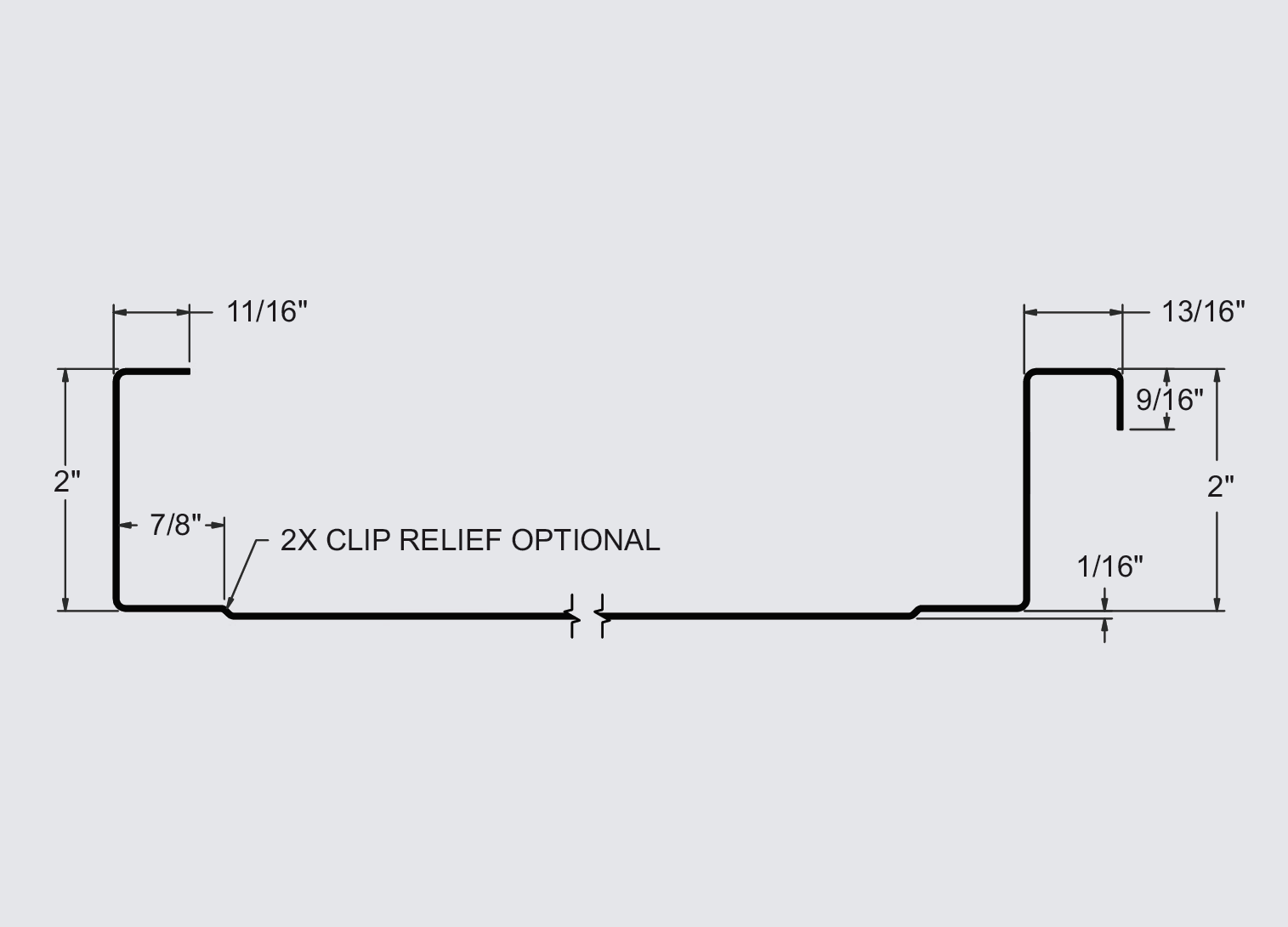

2'' Mechanical Seam
Hidden fastener/clip system for industrial/commercial use. Mechanically seamed panel system. This panel uses a 24" coil. This panel uses 5-13/16" of material to form the panel. Divide the coil width by the panel width to determine your roof multiplier. Take the square footage of the roof and multiply that by the roof multiplier to determine the amount of coil needed to manufacture the panels. This does not include waste. Clip Relief, Bead Ribs, and Striations do not affect the engineering or function. This panel is approved for Weathertight Warranties.
VIKING PRODUCED

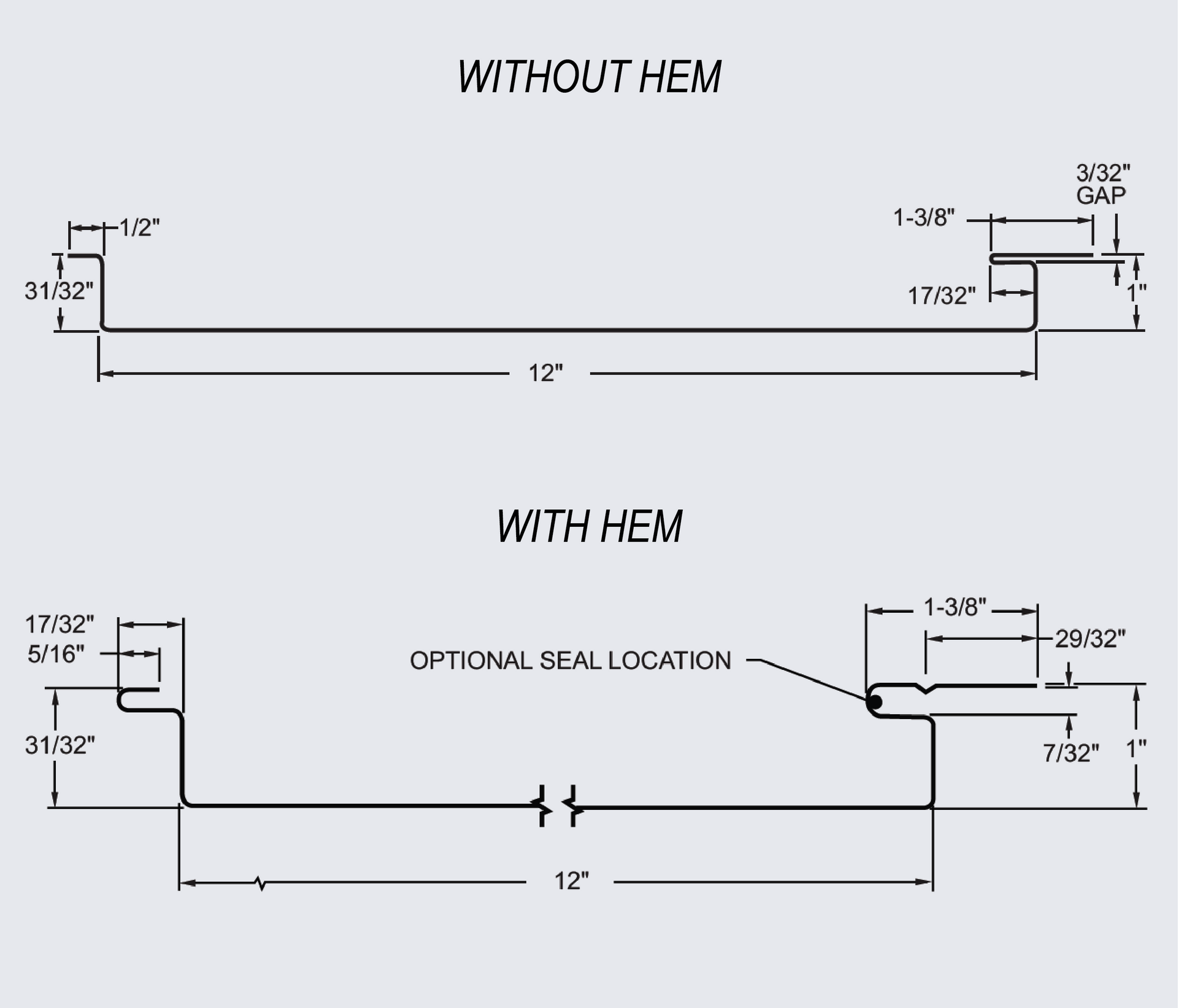

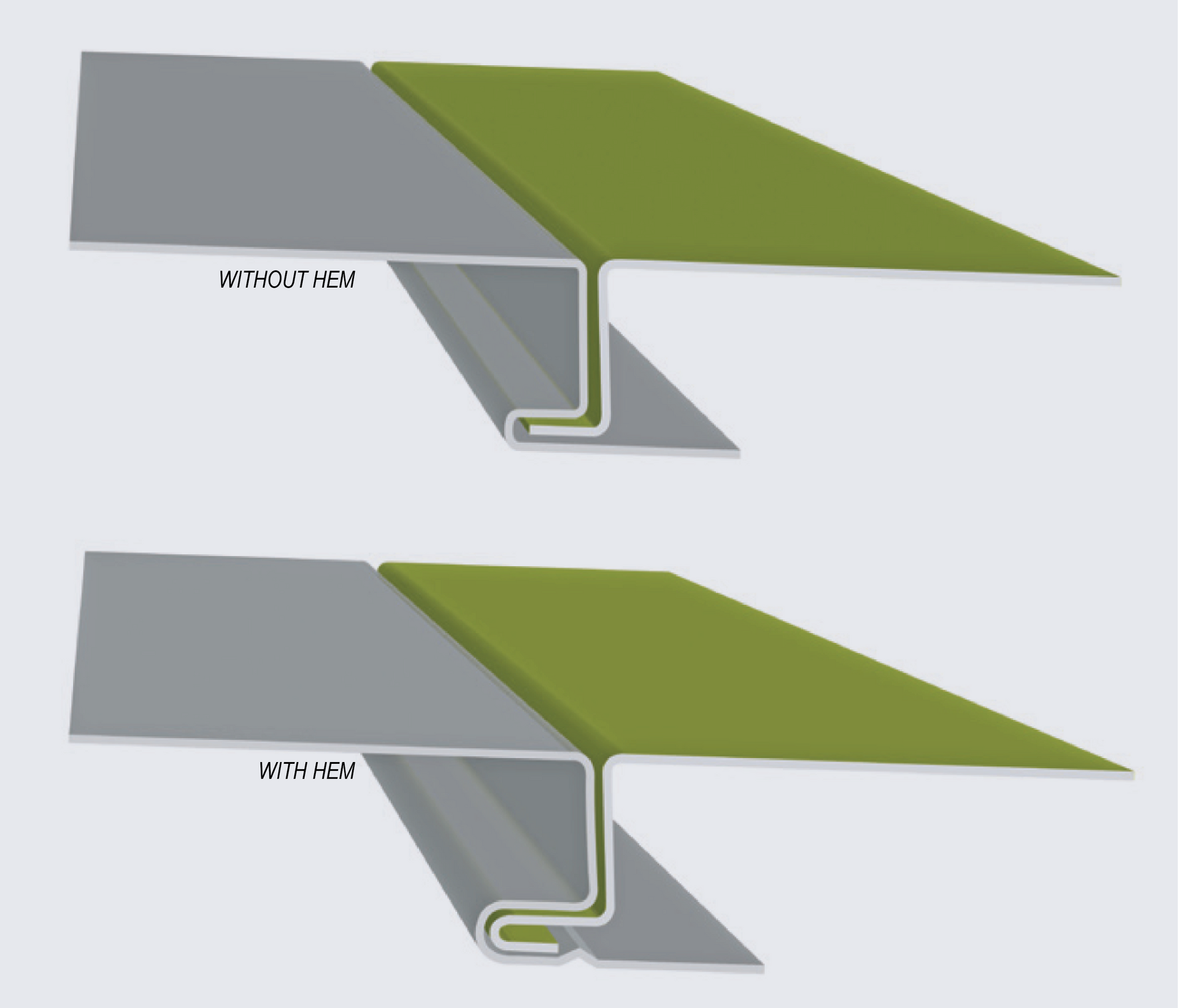

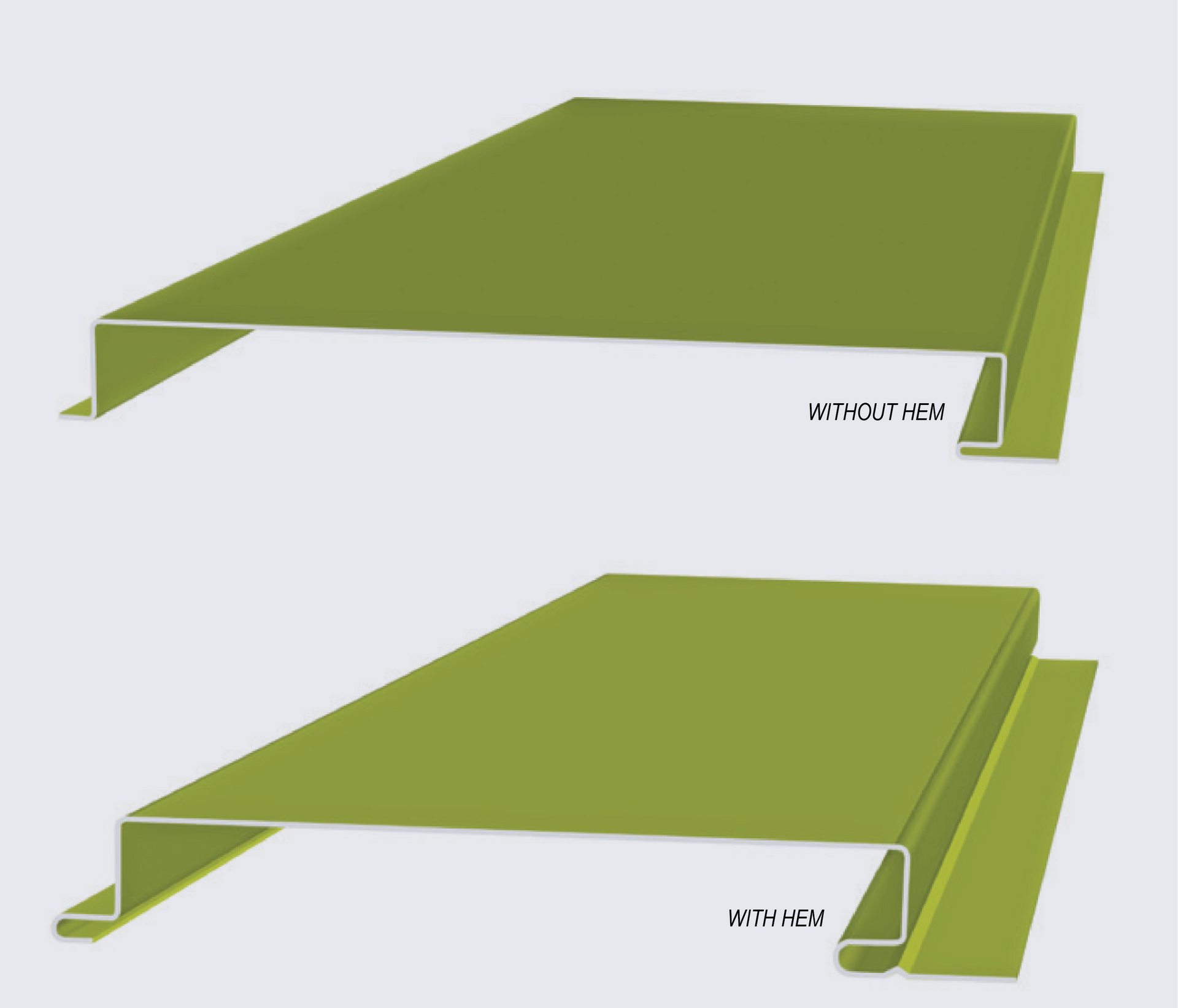

1'' Flush Wall & Soffit
This panel uses a 16" coil. This panel uses 4" of material to form the panel. If you take the square footage of the wall and multiply that by 1.25, the total will be the amount of coil needed to manufacture the panels. Perforation opening size .50 [12.7] X .12 [3.0] = .06 Sq. In. [38.7 sq. mm.] Openings per 12 inch length [304.8] Net Free Area / 12 inch = .06 Sq. In. X 51.25 = 3.08 Sq. In. [Net Fr ee Area 1304.8mm = 38.7 sq. mm X 51.25 = 1983 sq. mm]
